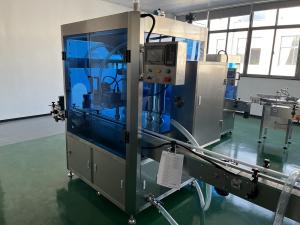

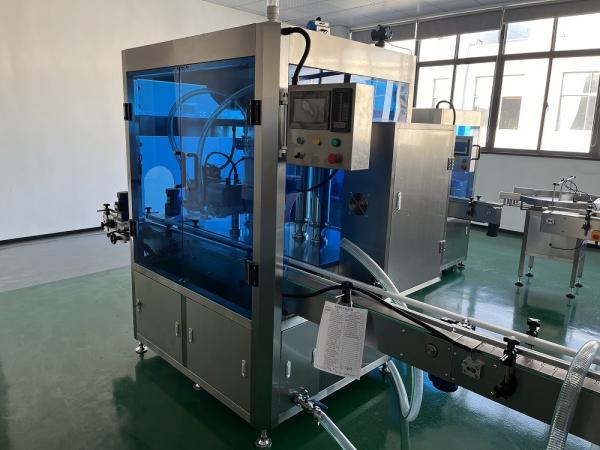

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

Brand Name : METICA

Model Number : MTGF-1000

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Price : USD 13000-16000/SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 25-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : Shampoo and detergent filling machine, liquid and paste filling machine

Application : Beverage,Food,Chemical,Medical,Commodity

Capacity : 1000-2000 BPH(customizable)

Filling accuracy : >= 99%

Machine size : 2400*1350*1730 mm

Warranty : one-year warranty

Automatic grade : Automatic tracking and filling

Driven type : Electric and Pneumatic

Voltage : 220V, 50/60Hz (customizable)

Packaging type : Plastic Bottles,Cans,Barrel, Glass Jars

Filling system : Servo motor driven piston

Contact Now

Hand Sanitizer And Shampoo Bottle Tracking Filling Machine

Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as shampoo, detergent and Medical Alcohol, sauce / paste / jam / edible oil and viscosity liquid filling.

    If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

    The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

  • Adopts piston + servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts 2 filling nozzles, can change to 4/6/8 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Servo motor controls the filling nozzle to track the bottle and fill it
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.

Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed 1500-2000bph (customizable)
Filling accuracy >99%
Filling volume 50-500ml, 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

High Speed Automatic Bottle Filling Machine For Shampoo DetergentHigh Speed Automatic Bottle Filling Machine For Shampoo DetergentHigh Speed Automatic Bottle Filling Machine For Shampoo DetergentHigh Speed Automatic Bottle Filling Machine For Shampoo DetergentHigh Speed Automatic Bottle Filling Machine For Shampoo Detergent

Samples display:

High Speed Automatic Bottle Filling Machine For Shampoo DetergentHigh Speed Automatic Bottle Filling Machine For Shampoo Detergent

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

Service flow:

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

Pre-sale Service:

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

Packing&Shipping:

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

After-sale service:

High Speed Automatic Bottle Filling Machine For Shampoo Detergent

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
